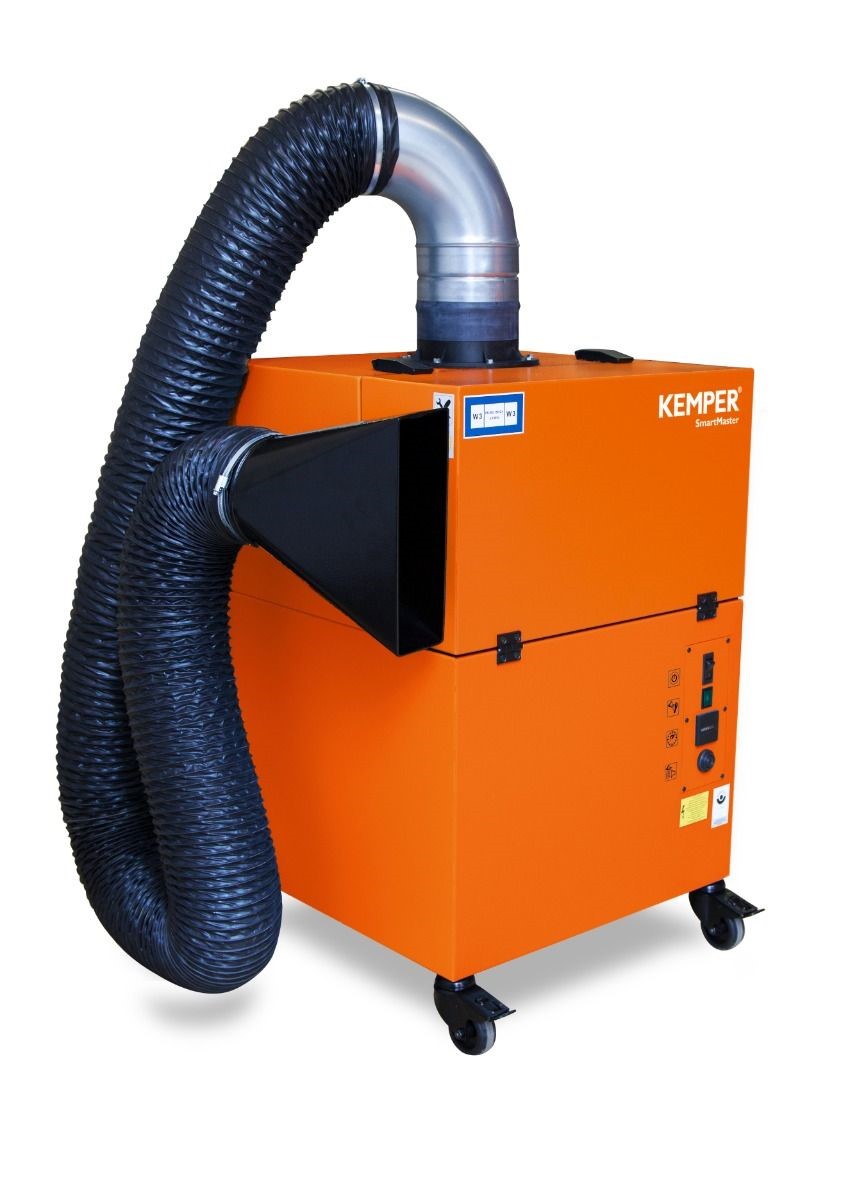

The effectiveness of any welding fume extraction system ultimately depends on its ability to capture contaminants at their source before they can reach the welder's breathing zone. The Kemper SmartMaster offers multiple extraction arm configurations, each designed to optimize capture efficiency for specific welding scenarios.
The Critical Importance of Proper Capture
Even the most advanced filtration technology provides limited protection if fumes aren't effectively captured at their source. Proper extraction arm selection and positioning is essential because:
- Welding fumes can disperse beyond the capture zone in less than one second
- Once fumes enter the breathing zone, exposure has already occurred
- Capture efficiency decreases dramatically with distance from the source
- Different welding processes produce fumes with varying dispersion characteristics
- Workplace drafts and air movements can redirect fumes away from basic capture attempts
The Kemper SmartMaster addresses these challenges through a range of specialized extraction arms designed for optimal source capture across diverse welding applications.
Available Arm Configurations
The SmartMaster system accommodates several extraction arm options, each with specific advantages:
- Self-Supporting Articulated Arms (2-4m)
- Featuring internal support mechanism for stable positioning
- Available in 2m, 3m, and 4m lengths for different reach requirements
- Maintaining position without drift or sagging
- Offering 360° rotation at the mounting point
- Providing multiple articulation points for precise positioning
- Hose-Type Extraction Arms (2-3m)
- Delivering maximum flexibility for complex positioning requirements
- Offering lighter weight for frequent repositioning
- Providing economical extraction solutions
- Available in 2m and 3m lengths
- Including external support structure for position maintenance
- Specialized Capture Elements
- Funnel nozzles for concentrated capture of specific processes
- Hood designs for broader capture areas
- Transparent hood options maintaining visibility of the work area
- Metal hoods for challenging high-heat applications
- Adjustable damper controls for optimized airflow
Selecting the Optimal Configuration
Choosing the right extraction arm configuration depends on several application-specific factors:
Process Considerations:
- MIG/MAG welding typically requires closer positioning due to higher fume generation
- TIG welding may allow somewhat greater distance while maintaining effectiveness
- Plasma cutting creates rapidly dispersing fumes requiring immediate capture
- Grinding applications generate directional particulates requiring specific positioning
Workspace Factors:
- Fixed welding stations benefit from longer, self-supporting arms
- Varied work locations may require more flexible, easily repositioned options
- Overhead welding needs specifically positioned capture elements
- Confined space work may require more compact extraction solutions
- Workpiece size influences optimal arm length and articulation requirements
Optimization Through Proper Positioning
Beyond selecting the appropriate arm configuration, extraction effectiveness depends significantly on proper positioning:
- Optimal distance: Positioning the capture element 15-20cm from the welding point balances effective capture with work visibility and access.
- Correct angle: Placing the extraction in the natural path of rising fumes (typically 30-45° from vertical) significantly improves capture efficiency.
- Strategic positioning: Locating the extraction between the welder and the work ensures fumes are drawn away from the breathing zone rather than through it.
- Regular adjustment: Moving the extraction arm to maintain optimal position as welding progresses ensures continuous protection throughout changing operations.
- Draft consideration: Positioning extraction to account for workplace air movements prevents fume diversion away from capture elements.
The SmartMaster's arm designs facilitate these positioning best practices through easy adjustment and stable positioning once placed.
Performance Impact of Proper Arm Selection
Selecting and properly positioning the optimal extraction arm configuration delivers significant performance benefits:
- Up to 40% improvement in capture efficiency compared to generic positioning
- Reduced overall air volume requirements while maintaining protection
- Extended filter life through more efficient contaminant capture
- Improved welder comfort through better visibility and access
- Enhanced compliance with exposure limit regulations
For operations seeking to maximize the effectiveness of their welding fume extraction investment, the Kemper SmartMaster's range of arm options provides the flexibility to create truly optimized capture solutions for any welding application.
