Series 90

Discover DEA WorkLab Series 90 at Hall-Fast - the compact, space-efficient range of Italian-engineered industrial workspace solutions designed for smaller facilities, tight spaces, and applications where footprint minimization is critical without compromising quality or functionality. Our Series 90 collection delivers professional-grade construction, modular versatility, and authentic DEA quality in optimized dimensions perfectly suited for constrained environments, mobile operations, and space-conscious facilities.

What is DEA WorkLab Series 90?

DEA WorkLab Series 90 represents the most compact series in the DEA WorkLab family, specifically engineered for applications where space efficiency is paramount. Built to the same exacting Italian quality standards as larger DEA series, Series 90 products feature reduced depth profiles (typically 600mm), narrower widths, and optimized storage configurations delivering maximum functionality within minimal footprints. This series proves that professional workspace solutions need not sacrifice quality for compactness.

Series 90 Distinguishing Characteristics

Compact Depth Profile

Standard Depth: 600mm

Series 90 units feature 600mm depth compared to 750mm (Series 110/150) or 900mm (Series 200), creating workspace solutions ideal for:

• Narrow aisles and corridors
• Space-constrained production areas
• Mobile laboratories and field stations
• Retrofit installations in existing facilities
• Multi-operator workspaces requiring access from multiple sides
• Transportation applications where depth matters

Benefits:

• Reduced floor space consumption
• Improved aisle accessibility
• Enhanced workspace efficiency
• Easier integration in tight layouts

Optimized Width Options

Available Widths: 900mm - 1500mm

Series 90 offers narrower width configurations than larger series:

• 900mm: Single-operator compact stations
• 1200mm: Standard single-workstation applications
• 1500mm: Expanded work surface or dual-operator access

Comparison to Other Series:

• Series 90: 900mm-1500mm
• Series 110/150: 1200mm-2100mm
• Series 200: 1500mm-3000mm

Reduced Height Profiles

Working Heights: 850mm-900mmTotal Heights (with upper structures): 1600mm-2000mm

Lower overall heights compared to Series 150/200 provide:

• Easier access to upper storage
• Reduced visual barriers in open workspaces
• Simplified material handling at elevated levels
• Improved lighting efficiency
• Better supervision and communication across facilities

Streamlined Storage Capacity

Series 90 drawer units and cabinets feature:

• Drawer depths: 400mm-500mm (vs. 550mm-700mm in larger series)
• Optimized for small parts and tools
• Reduced weight per loaded drawer
• More accessible drawer organization
• Suitable for most component storage needs

Series 90 Product Range

Series 90 Workbenches

Compact Single Workstations:

• Dimensions: 900mm-1500mm width × 600mm depth
• Working height: 850mm-900mm
• Worktop options: Beech, HPL, stainless steel, linoleum
• Load capacity: 300kg-500kg
• Lower shelf or drawer integration
• Panel systems for tool hanging

Applications:

• Quality control stations
• Assembly cells
• Testing and inspection
• Light manufacturing
• Electronics work
• Laboratory benches

Key Features:

• Ergonomic working height
• Tool-friendly surfaces
• Modular accessory integration
• Robust steel frame construction
• Powder-coated finish

Series 90 Mobile Workstations

Wheeled Work Carts:

• Compact footprint: 900mm-1200mm width × 600mm depth
• Industrial casters (100mm-125mm diameter)
• Work surface options matching fixed benches
• Lower shelf configurations
• Load capacity: 250kg-400kg
• Foot-operated brakes

Applications:

• Mobile tool stations
• Point-of-use work platforms
• Flexible production support
• Maintenance operations
• Kitting and material handling

Mobility Features:

• Two fixed, two swivel casters (standard)
• Polyurethane wheels for floor protection
• Push handles (optional)
• Compact turning radius

Series 90 Drawer Units

Freestanding Drawer Cabinets:

• Width: 500mm-600mm
• Depth: 600mm
• Height: 750mm-1000mm
• Drawer configurations: 3-7 drawers
• Individual load capacity: 50kg-75kg per drawer
• Full-extension slides

Drawer Height Options:

• 75mm: Small parts, fasteners, tools
• 100mm: Hand tools, instruments
• 150mm: Larger tools, equipment
• 200mm: Bulky items, power tools

Features:

• Individual drawer locks
• Organized storage dividers
• Smooth ball-bearing slides
• Anti-tilt mechanism
• Label holders for identification

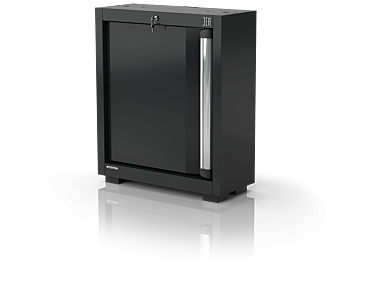

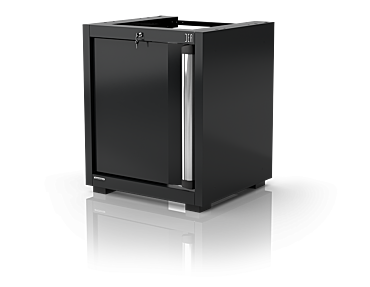

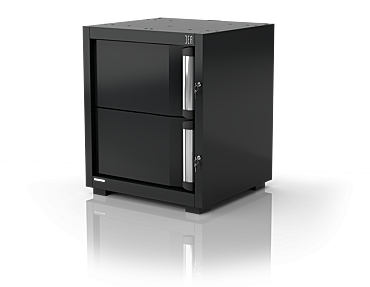

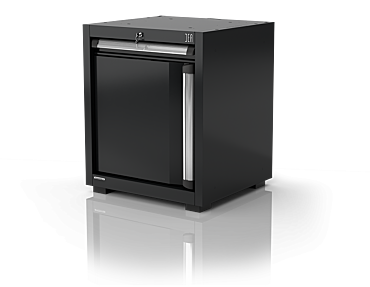

Series 90 Door Cabinets

Compact Storage Cabinets:

• Width: 500mm-1000mm
• Depth: 600mm
• Height: 1000mm-1800mm
• Single or double-door configurations
• Adjustable shelving
• Lockable security

Internal Configuration:

• 2-4 adjustable shelves typical
• Load capacity: 50kg-100kg per shelf
• Optional drawer integration
• Perforated door panels for visibility
• Cable routing provisions

Applications:

• Small parts storage
• Tool security
• Supply inventory
• Document storage
• PPE equipment

Series 90 Wall Units

Space-Saving Overhead Storage:

• Width: 900mm-1500mm (matching bench widths)
• Depth: 300mm-400mm (shallow profile)
• Height: 400mm-800mm
• Wall-mounting or bench-mounting options
• Open shelving or glazed doors

Benefits:

• Vertical space utilization
• Frequently-used item accessibility
• Visual workflow support
• Dust-protected storage (glazed options)
• Minimal floor space consumption

Series 90 Panel Systems

Tool Organization Panels:

• Perforated steel panels: 900mm-1500mm width
• Mounting above work surfaces
• Hook and holder accessories
• Shadow board organization
• Visual tool management

Accessories:

• Tool hooks and holders
• Parts bins
• Document holders
• Accessory rails
• Custom foam inserts

Technical Specifications - Series 90

Frame Construction

• Material: Welded steel tube, 40mm × 40mm profile
• Finish: Powder-coated RAL 7035 (light grey) standard
• Welding: Full-penetration welds at all joints
• Corner Reinforcement: Gusset plates ensuring rigidity
• Levelling: Adjustable feet (± 15mm adjustment)

Load Capacities

Workbenches:

• Uniformly distributed load: 300kg-500kg depending on configuration
• Point load capability: 100kg-150kg
• Dynamic loads accommodated with appropriate safety factors

Drawer Units:

• Per drawer: 50kg-75kg
• Total unit capacity: 200kg-400kg
• Anti-tip mechanism engages with drawer extension

Shelving:

• Per shelf: 50kg-100kg
• Evenly distributed loads

Dimensional Standards

Workbench Dimensions:

• Width: 900mm, 1200mm, 1500mm
• Depth: 600mm (standard)
• Working height: 850mm-900mm
• Total height (with panel): 1600mm-1800mm

Mobile Units:

• Width: 900mm-1200mm
• Depth: 600mm
• Overall height: 900mm-1000mm
• Caster diameter: 100mm-125mm

Storage Units:

• Width: 500mm-1000mm
• Depth: 600mm
• Height: 750mm-1800mm

Worktop Options

Beech Hardwood:

• Thickness: 40mm
• Surface: Oil or varnish finish
• Load capacity: 300kg-500kg
• Natural shock absorption
• Repairable surface

High-Pressure Laminate:

• Thickness: 25mm-30mm
• Core: Chipboard or MDF
• Chemical resistant surface
• Load capacity: 250kg-400kg
• Multiple Color options

Stainless Steel:

• Gauge: 1.5mm-2.0mm over core
• Grade: 304 stainless steel
• Hygienic cleanable surface
• Corrosion resistant
• Food-safe applications

ESD-Safe Linoleum:

• Surface resistance: 10⁶-10⁹ ohms
• Grounding provisions included
• Natural material composition
• Electronics manufacturing

Key Applications for Series 90

Small-Scale Manufacturing

Compact workspace solutions for:

• Electronics assembly
• Precision manufacturing
• Medical device production
• Instrument assembly
• Watchmaking and jewellery
• Optical component work

Quality Control & Inspection

Space-efficient inspection stations:

• Component verification
• Dimensional inspection
• Visual quality control
• Testing and measurement
• Documentation stations

Laboratory Environments

Compact lab benches for:

• Sample preparation
• Testing and analysis
• Instrument stations
• Chemical work (stainless tops)
• Clean room applications
• Research laboratories

Maintenance & Repair Operations

Mobile and fixed workstations supporting:

• Equipment service
• Tool storage and organization
• Component repair
• Calibration work
• Field service operations

Education & Training

Cost-effective workspace for:

• Training laboratories
• Educational workshops
• Demonstration stations
• Student workbenches
• Skills development centres

Retail & Service Operations

Customer-facing work areas:

• Repair counters
• Service stations
• Behind-counter workspaces
• Mobile demonstration units
• Point-of-sale technical work

Space-Constrained Facilities

Ideal for environments with limited space:

• Urban manufacturing facilities
• Retrofit installations
• Multi-use spaces
• Mobile laboratories
• Temporary facilities
• Shared workshops

Series 90 vs. Other DEA Series

When to Choose Series 90:

• Space constraints: Facility has limited floor space
• Narrow aisles: Access corridors under 1200mm
• Light to medium duty: Work suitable for 300kg-500kg capacity
• Small parts focus: Primary work with components, tools, small assemblies
• Budget considerations: Most economical DEA series entry point
• Mobile requirements: Frequent reconfiguration needs
• Retrofit projects: Integration into existing facility layouts

When to Consider Series 110/150:

• Standard depth requirements (750mm)
• Higher load capacities needed
• Extensive storage integration
• Larger work envelope required

When to Consider Series 200:

• Heavy-duty applications (800kg+ capacity)
• Maximum storage volume required
• Large assembly or manufacturing work
• Industrial-scale operations

Benefits of Series 90

Space Efficiency

600mm depth reduces floor space consumption by 20% compared to standard 750mm depth units while maintaining full professional functionality and quality construction.

Cost Effectiveness

Compact dimensions result in lower material content while preserving Italian quality engineering, providing economical entry into the DEA WorkLab system without compromising on build quality or durability.

Layout Flexibility

Smaller footprint enables more varied facility layouts, supporting creative space utilization, multiple workstation configurations, and adaptable manufacturing cells that can evolve with operational needs.

Accessibility Improvement

Reduced depth allows workstations to be positioned in narrower areas, improving operator access, supporting multi-sided access scenarios, and facilitating better supervision and communication.

Mobility Enhancement

Compact mobile units are easier to manoeuvre, require less storage space when not in use, and support point-of-use manufacturing strategies more effectively than larger alternatives.

System Integration

Full compatibility with DEA WorkLab accessories, fluid/energy distribution modules, and organizational systems ensures Series 90 units benefit from the complete ecosystem despite their reduced dimensions.

Modular Accessory Integration

Series 90 products accommodate the full range of DEA accessories:

Work Surface Accessories

• Vises and clamping systems (appropriate sizes)
• Task lighting systems
• Magnification equipment
• Power strips and outlets
• Tool holders and racks
• Monitor arms and mounts

Storage Accessories

• Drawer divider systems
• Tool foam organization
• Bin rail systems
• Hanging file provisions
• Security locks

Panel Accessories

• Perforated panels
• Tool hooks and holders
• Parts bins
• Documentation holders
• Visual management systems

Mobility Accessories

• Industrial casters
• Push handles
• Brake systems
• Tie-down provisions
• Cable management

Installation & Setup

Site Preparation

• Level floor surface (within 5mm per meter)
• Electrical access if power integration required
• Adequate clearance for drawer/door operation
• Access for delivery and positioning

Assembly Process

Series 90 units typically arrive:

• Fully assembled: Mobile carts, smaller drawer units
• Partial assembly required: Larger workbenches, panel installation
• Modular components: Custom configurations, multi-unit systems

Installation Time:

• Single workbench: 30-60 minutes
• Drawer unit: 15-30 minutes
• Complete workstation: 1-2 hours

Levelling & Adjustment

• Adjustable feet on all floor-standing units
• ± 15mm height adjustment range
• Spirit level verification
• Load distribution check
• Stability confirmation

Maintenance & Care

Regular Maintenance

• Daily: Clean work surfaces, inspect for damage
• Weekly: Check fasteners, verify drawer operation
• Monthly: Lubricate slides, adjust levelling
• Quarterly: Inspect casters, tighten connections
• Annually: Full system inspection, touch-up finish

Worktop Care

• Beech: Clean with damp cloth, re-oil periodically
• Laminate: Mild detergent and water, avoid abrasives
• Stainless: Stainless steel cleaner, grain direction wiping
• Linoleum: Neutral pH cleaner, verify grounding connections

Drawer Maintenance

• Remove debris from slides
• Light lubrication of bearing surfaces
• Check anti-tilt mechanism
• Verify load distribution
• Inspect locking mechanisms

Integration with DEA WorkLab System

Series 90 integrates seamlessly with:

• DEA Complete Units - Coordinated workspace systems
• Industrial Workbenches - Mixed series installations
• Industrial Worktops - Matching surfaces across series
• Mobile Workstations - Flexible workspace strategies
• Industrial Drawer Units - Coordinated storage
• Industrial Cabinets - Secure storage integration
• Fluid and Energy Distribution Modules - Utility integration
• Series 110 - Step-up capacity
• Series 150 - Enhanced features
• Series 200 - Maximum capacity

Customization Options

Custom Dimensions

While Series 90 follows standard compact sizing, custom configurations available:

• Specific width requirements
• Non-standard heights
• Unique worktop dimensions
• Special depth variations (within series constraints)

Custom Finishes

• RAL Color matching for corporate branding
• Special surface treatments
• ESD-compliant finishes
• Stainless steel construction throughout

Specialized Configurations

• Integrated weighing platforms
• Built-in lighting systems
• Computer/monitor integration
• Specialized drawer layouts
• Application-specific accessories

Volume Projects

For facility-wide implementations:

• Coordinated design consultation
• Matching aesthetics across units
• Standardized configurations
• Installation support
• Training and documentation

Safety & Compliance

European Standards Compliance

• EN 1757-1: Storage furniture safety requirements
• EN ISO 12100: Machinery safety
• Load capacity testing and certification
• Stability testing per standards
• Electrical safety (if applicable)

Workplace Safety Features

• Anti-tip mechanisms on drawer units
• Smooth edges and rounded corners
• Secure mounting provisions
• Load capacity labelling
• Operational safety instructions

Ergonomic Considerations

• Working height optimization (850mm-900mm)
• Drawer accessibility without excessive bending
• Visual organization supporting efficiency
• Appropriate reach zones
• Operator comfort prioritization

Why Choose Hall-Fast for Series 90?

• Authorized DEA Supplier - Genuine Italian-manufactured Series 90 products
• Space Optimization Expertise - Professional consultation on compact workspace design
• Complete Range - Full Series 90 product selection in stock
• Custom Configuration - Bespoke solutions for unique requirements
• Competitive Pricing - Best value on premium compact workspace systems
• Fast Delivery - Quick turnaround on standard and custom units
• Quality Assurance - Rigorous inspection before shipment
• Technical Support - Expert guidance on selection and installation
• System Integration - Complete DEA WorkLab ecosystem expertise
• Multi-Series Projects - Coordinating Series 90 with other DEA series

Get Series 90 Compact Workspace Solutions

Maximize your facility efficiency with premium DEA WorkLab Series 90 compact workspace systems from Hall-Fast. Contact our workspace specialists for expert guidance on optimal Series 90 configurations, custom solutions, and complete systems perfectly matched to your space constraints, operational requirements, and quality standards.

Contact Hall-Fast:

• Phone: 01623 645645
• Email:sales@hall-fast.com

Request detailed specifications, configuration recommendations, custom quotations, or place your order today. Hall-Fast - your trusted supplier of compact Italian workspace solutions throughout the UK.
