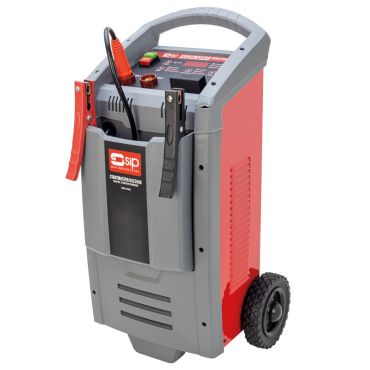

SIP STARTMASTER DSC350B Digital Starter Charger
The SIP STARTMASTER DSC350B Digital Starter Charger is a powerful wheel-mounted digital starter charger designed for charging and boosting a variety of lead acid and Lithium-Ion battery types.
Featuring an intelligent microprocessor with 10-step automatic charging cycle, the STARTMASTER DSC350B makes battery charging and boosting easier, faster and safer.
Applications & uses: Ideal for battery charging and boost-start applications in automotive, agricultural and engineering workshop environments. Suitable for charging commercial vehicle batteries.
SIP 2-Year Standard Silver Warranty
Versatile charger booster suitable for a variety of lead acid and Lithium-Ion batteries
This includes WET, MF, EFB, GEL, AGM, CA and 12v LiFePO4 battery types.
Suitable for charging 12v and 24v batteries.
Durable booster capacity for 12v and 24v batteries.
Microprocessor-controlled charger booster supports reliable performance and functionality
An intelligent 10-step cycle automatically diagnoses battery condition and voltage before beginning a charging cycle.
Battery auto-detect intelligently recognises 12v or 24v type before beginning a charging or boosting cycle.
Low 1v detection improves chances of recovering batteries unwilling to power. Voltage will display when starter charger is switched on.
'Alternator Test' mode indicates alternator working condition before applying charging or boosting.
'One-person operation' allows for single user engine boost-start.
Supplied with 2x 2mtr leads and clip clamps.
LED display screen and intuitive soft touch control panel to select charge and boost settings.
Wheel-mounted with pull handle for outstanding mobility.
Built-in safety and protection features maximise user safety
Anti-spark system prevents sparks when connecting the clips to the battery terminals.
Reverse polarity and overcharge protection ensure the unit operates only when correctly connected.
Fitted with an overheat alarm to prevent unit damage. This automatically restarts once cooled.
Technical Information
ITEM NO. | 03586 |
Input Supply: | 230v 50Hz |
Battery Voltage: | 12v / 24v |
Functions: | 10-Stage Charging, Boost & Support |
CHARGING | |
Battery Types: | All 12v/24v Lead Acid |
Charging Input: | Continuous; 1400w / 5A |
Recommended Plug (not supplied): | 230v (13A) |
Charging Current: | 5A - 20A |
Boost Charging Current (5min max.): | 35A |
Battery Capacity: | 350Ah |
JUMP START | |
Start Voltage: | >1v |
Start Input (5sec): | 7.5kW / 32A |
Recommended Plug (not supplied): | 230v (32A) |
Fuse: | 200A |
Max. Start Current: | 400A (fully discharged battery) |
Protection / Ambient Temperature: | IP20 / 0°C - 20°C |
Net Weight: | 18.69kg |
Gross Weight: | 21.10kg |
Product Dimensions: | 613(H) x 293(W) x 214mm(D) |
Packaged Dimensions: | 600(H) x 358(W) x 358mm(D) |
