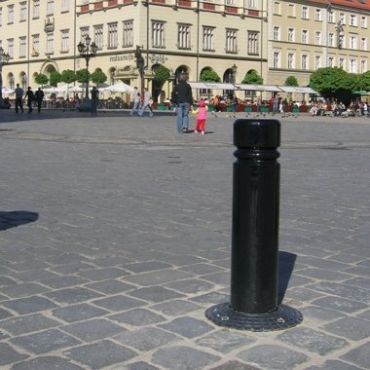

Retractable Steel Bollards

Description:

• Supplied with full installation and maintenance instructions which must be carefully followed.
• Applied force of 20 kg is required to retract the bollard.
• Painted after Zinc anti-corrosion treatment, in our RAL colours.
• Operation With one turn of the key, the bollard rises and automatically locks into the raised position. To retract the bollard: Turn the key and remove it, then apply vertical pressure to the dome of bollard with the foot, until it locks automatically in the lowered position.
• The lock unit is made of stainless steel. The stainless steel lock protector is spring loaded and shields the mechanism from ingress of dirt. The standard lock supplied uses an 11 mm triangle key
• Ground-Cover Removable for maintenance. Made of 60 mm cast iron, Ø 460, 10mm gauge steel.
• Non-slip with a raised paved effect and a slope calculated to allow water to run off.
• Galvanised and Lacquered black. Fixed to the casing by 4 stainless steel Hex socket cap head screws: Ø 12 mm.
• Screw heads protected by removable rubber caps.
• Is made of galvanised sheet steel, with strong lifting eyelets for quick and easy installation.
• The bollard support is equipped with guide ball bearings, distortion resistant and hard wearing. The bollard slides vertically in a removable drum inserted in the ground-fixed casing. The bollard is raised by a sealed gas piston.
• The bollard is activated by a sealed gas piston and slides vertically in a removable drum inserted in the ground-fixed outer casing.

206572 - HAG 555mm, Ø 160mm

206616 - HAG 680mm, Ø 160mm

206617 - HAG 590mm, Ø 270mm

206618 - HAG 725mm, Ø 160mm

206611 - HAG 515mm, Ø 270mm

206612 - HAG 605mm, Ø 220mm

206613 - HAG 705mm, Ø 160mm

206614 - HAG 365mm, Ø 300mm

206615 - HAG 445mm, Ø 200 x 200mm
