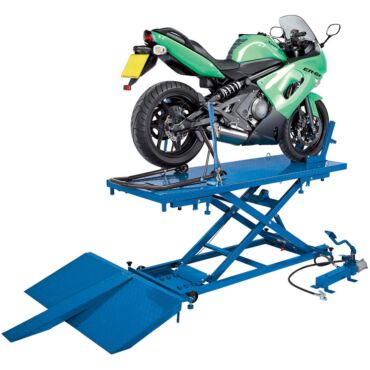

Draper Pneumatic/Hydraulic Motorcycle/ATV Small Garden Machinery Lift, 680kg

The Draper MCL4 is the flagship of the entire Draper motorcycle lift range — a 680 kg, multi-vehicle professional lift table that handles motorcycles, quad bikes, ATVs, mini tractors and small garden machinery within a single versatile platform. No other lift in the range covers this breadth of vehicle type, and the MCL4's combination of dual pneumatic and hydraulic operation, the highest capacity in the range, and a configurable table width that expands to 1,950 x 1,220 mm with the supplied side extension plates makes it the natural choice for workshops and dealers that service a mixed fleet of powered vehicles.

The table configures to two distinct widths. In standard motorcycle configuration the working surface measures 1,950 x 680 mm — the same width as the MCL2 and MCL3, accommodating all production motorcycles. Fitting the supplied side extension plates expands the table to its full 1,950 x 1,220 mm ATV and garden machinery configuration, providing the width needed to support quad bikes, ride-on mowers, mini tractors and similar-sized vehicles that would overhang a narrower table. The transition between configurations is designed to be quick and tool-free, making a mixed-vehicle workshop genuinely practical rather than theoretical.

Three preset working height stops at 550, 720 and 840 mm — plus a maximum height of 885 mm — give the operator more height options than any other lift in the range. The full 200–885 mm lifting range starts from a 200 mm closed height and rises to the tallest working position available across the MCL series, covering every servicing scenario from ground-level work to standing-height engine access on the tallest adventure bikes or ATV chassis. Both the hydraulic foot pedal and the pneumatic pump with controller (1/4" BSP at 90 psi / 6.2 bar) are available at all times, so the operator uses whichever is most convenient for the task.

The removable front wheel clamp and rear wheel panel (600 x 250 mm) retain full motorcycle wheel servicing capability when the lift is in its standard narrow configuration. The safety table lock, stippled surface, wide 850 x 150 mm motorcycle loading ramp, transport wheels and base lockdowns are consistent with the rest of the MCL range. At 260 kg all-steel construction, the MCL4 is a permanent workshop centrepiece. Manufactured to EN1494-2000 and supplied in a wooden crate, it is the single lift that can replace two or three more specialised platforms in any workshop that services beyond motorcycles alone.

Table configurations

Copy

Motorcycle configuration

1,950 x 680 mm working surface. Standard width for all production motorcycles. Front wheel clamp and rear wheel removal panel active.

ATV / garden machinery configuration

1,950 x 1,220 mm with supplied side extension plates. Supports quad bikes, ATVs, mini tractors and small garden machinery.

Key feature

• 680 kg (1,500 lb) capacity — the highest rated lift in the Draper motorcycle and ATV lift range
• Dual pneumatic and hydraulic operation — foot pedal or air-powered pump with controller, both available at all times
• Configurable table width — 1,950 x 680 mm for motorcycles, expands to 1,950 x 1,220 mm with supplied side extension plates for ATVs and garden machinery
• Three preset working heights at 550, 720 and 840 mm — more height options than any other Draper lift table
• 885 mm maximum height — the tallest working position in the MCL range
• Handles motorcycles, quad bikes, ATVs, mini tractors and small garden machinery
• Removable front wheel clamp and rear panel (600 x 250 mm) — rear wheel access for motorcycle tyre and brake work
• Safety table lock — prevents accidental descent at any of the three working height positions
• 850 x 150 mm motorcycle loading ramp — wide, controlled ride-up for larger bikes
• 1/4" BSP pneumatic inlet at 90 psi (6.2 bar) — standard workshop compressor compatible
• Transport wheels with lockdowns — reposition freely, locked solid during use
• 260 kg all-steel construction — permanent, workshop-grade installation
• EN1494-2000 certified, supplied in wooden crate
