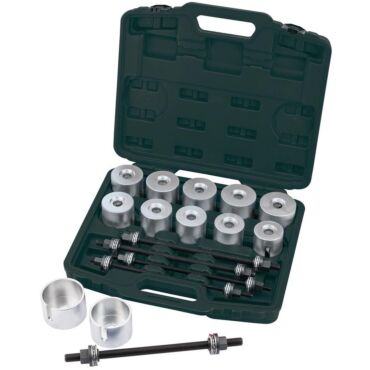

Draper Expert Bearing, Seal and Bush Insertion/Extraction Kit (27 Piece)

The Draper Expert Bearing, Seal and Bush Insertion/Extraction Kit (BPK27) is a 27-piece precision toolset designed for the accurate, controlled installation and removal of bearings, bushes, and shaft seals across a huge range of automotive, agricultural, and industrial applications. With 22 graduated adaptor rings and five fine-thread pulling spindles, this kit replaces the risky hammer-and-drift method with safe, threaded mechanical force — protecting both the component and the housing.

Supplied in a blow-moulded carrying case with display sleeve, the BPK27 keeps every adaptor and spindle clearly organised and ready for the next job.

A Smarter, Safer Way to Fit Bearings and Bushes

Hammering bearings in or out is a recipe for damaged housings, distorted races, and ruined seals. The Draper Expert BPK27 uses a fine-thread pulling spindle and matched adaptor rings to apply even, controlled pressure exactly where it's needed — drawing bearings, bushes, and seals smoothly into or out of their housings without shock loading or misalignment.

The result is a faster, cleaner job with significantly reduced risk of expensive collateral damage to suspension arms, gearboxes, hubs, and other precision assemblies.

Key Features and Benefits

The BPK27 has been engineered for professional accuracy and long-term reliability:

• 22 graduated adaptor rings covering an extensive size range from 34mm up to 90mm, allowing precise contact with bearings and bushes of virtually any common diameter
• Five fine-thread pulling spindles in M10, M12, M14, M16, and M18 to suit a wide variety of component sizes and pulling loads
• Ball-bearing thrust ends on the puller bars reduce friction during use, making operation smoother and protecting threads from wear
• High-quality steel construction for durability under repeated workshop use
• Twin-diameter adaptor rings allow each ring to be used for either pushing or pulling, doubling the versatility of every piece
• Suitable for normal bearings, silent bearings, hydraulic bearings, rubber bearings, bushes, and shaft seals — a true all-rounder for bearing servicing
• Works in-situ — many jobs can be completed without dismantling the entire assembly
• Blow-moulded carrying case with display sleeve keeps the kit organised, portable, and workshop-ready
• Draper Expert range — engineered for trade professionals and trusted across the UK

Ideal Applications

The BPK27 is a workshop essential for anyone regularly servicing components that contain pressed-in bearings, bushes, or seals. Typical applications include:

• Suspension arm and wishbone bushes
• Subframe and engine mount bushes
• Wheel bearings and hub assemblies
• Differential and gearbox bearings
• Driveshaft and propshaft seals
• Crankshaft and camshaft seals
• Silent block and rubber bushes
• Industrial pumps, motors, and gearboxes
• Agricultural and plant machinery components

From independent garages and bodyshops to fast-fit centres, agricultural workshops, and industrial maintenance teams, the BPK27 covers a vast range of routine and specialist tasks with a single, compact toolset.

Complete Kit Contents (27 Pieces)

The Draper Expert BPK27 includes the following high-quality steel components:

Adaptor Rings (22 pieces):

• 34mm x 44mm, 36mm x 46mm, 38mm x 48mm, 40mm x 50mm
• 42mm x 52mm, 44mm x 54mm, 46mm x 56mm, 48mm x 58mm
• 50mm x 60mm, 52mm x 62mm, 54mm x 64mm, 56mm x 66mm
• 58mm x 68mm, 60mm x 70mm, 62mm x 72mm, 64mm x 74mm
• 66mm x 76mm, 68mm x 78mm, 70mm x 80mm, 72mm x 82mm
• 75mm x 85mm, 80mm x 90mm

Pulling Spindles (5 pieces):

• M10 pulling spindle
• M12 pulling spindle
• M14 pulling spindle
• M16 pulling spindle
• M18 pulling spindle

Product Specifications

Why Choose the Draper Expert BPK27?

Pressed-in bearings, bushes, and seals are found throughout modern vehicles and machinery — and getting them in or out cleanly is one of the most common (and most damage-prone) jobs in any workshop. The Draper Expert BPK27 gives you the right size, the right thread, and the right method every time, replacing improvised hammer work with proper mechanical extraction and insertion.

As part of the trusted Draper Expert range, the BPK27 is built for daily professional use and pays for itself quickly through faster job times, fewer damaged components, and the ability to take on suspension, drivetrain, and bearing service work in-house rather than outsourcing it.

Whether you're a busy independent garage handling daily suspension work, an agricultural engineer servicing tractors and machinery, or a maintenance technician keeping industrial plant running, the BPK27 is a kit that earns its place in any serious toolbox.

Order the Draper Expert Bearing, Seal and Bush Insertion/Extraction Kit (BPK27) today and add a precision bearing service solution to your workshop arsenal.
