Diesel Engine Timing Tool Kit (BMW, PSA, Ford, Volvo 1.4D, 1.5D, 1.6D)

Description:

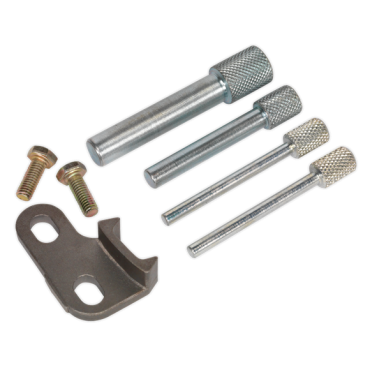

• Set of locking pins and flywheel locking tool for timing belt replacement and chain in head service operations.
• Suitable for 1.6D W16 diesel engines fitted in BMW Mini R55/56/57 models.
• The timing pins lock and hold the camshaft, crankshaft and HP pump in the timed position.
• Nett Weight: 0.20kg

Applications:

• BMW Mini R56/57: 1.6D Cooper D (07-10), 1.6D One D (09-10)
• BMW Mini Clubman R55: 1.6D Cooper D (07-10)
• Citroen: Berlingo I/II (05-11), Berlingo III (08-16), C1 (05-10), C2 (03-10), C3 I/II (02-10), C3 III (10-17), C3 Picasso (09-12), C3 Pluriel (04-10), DS3 (09-12), C4 (04-11), C4 II (11-16), C4 Picasso/Grand Picasso (06-13), C5 II (04-08), C5 III (07-12), DS4 (11-12), Nemo (08-10), Xsara II (04-08), Xsara Picasso (04-10)
• Ford: B-Max (12-15), C-Max (07-15), Fiesta (02-15), Focus (04-15), Focus C-Max (03-07), Fusion (04-11), Grand C-Max (10-15), EcoSport (13-15), Tourneo Courier (14-15)
• Mazda: 2 (02-10), 3 (04-12), 5 (10-12)
• Peugeot: 107 (05-10), 1007 (05-10), 206 (01-12), 206+ (10-13), 206CC (05-07), 207 (06-13), 207CC (07-15), 208 (12-17), 2008 (12-17), 307 (01-08), 308 (07-17), 308CC (09-15), 3008 (09-16), 407 (04-11), 4008 (12-15), 508 (11-17), 5008 (09-17), Bipper (08-10), Expert (10-12), Partner I/II (05-11), Partner III (08-17)
• Suzuki: Liana (04-08), SX4 (07-11)
• Toyota: Aygo (05-10)
• Volvo: C30 (06-13), S40 (04-12), S60 (11-15), S80 (09-15), V40 (12-15), V50 (04-12), V60 (11-15), V70 (11-15)
• Engine Codes -
• 1.4D: F6JA, F6JB
• 1.4D D-4D: ZWZ-TV
• 1.4D DDiS: (DV4)8HY
• 1.4D HDi: DV4C(8HR), DV4TD(8HT), DV4TD(8HW), DV4TD(8HX), DV4TD(8HZ), DV4TED(8HS), DV4TED4(8HX), DV4TED4(8HY), DVTED4(8HV)
• 1.4D TDCi: F6JA, F6JB, F6JC, F6JD, KVJA
• 1.5D TDCi: UGJC, ENUG, UGCA
• 1.6D: MZ-CD(Y6), W16, W16U0, Y6
• 1.6D DDiS: DV6(9HX)
• 1.6D eDrive: D4162T, D4164T
• 1.6D eHDi: DV6C(9HR), DV6FC(BHW), DV6FC(BHX), DV6FC(BHY), DV6FC(BHZ)
• 1.6D HDi: DV6(9HR), DV6ATED(9HX), DV6ATED(9HY), DV6ATED4(9HX), DV6AUTED4(9HX), DV6BTED4(9HT), DV6BTED4(9HW), DV6BUTED4(9HT), DV6C(9HL), DV6C(9HR), DV6C9(HR), DV6CATED(9HX), DV6D(9HP), DV6DTED(9HJ) , DV6DTED(9HP), DV6ETED(9HN), DV6TED(9HP), DV6TED4(9HV), DV6TED4(9HW), DV6TED4(9HX), DV6TED4(9HY), DV6TED4(9HZ), DV6TED4B, DV6TED4B(9HV), DV6TED4BU(9HS), DV6UTED4(9HU), DV6UTED4(9HX), DVTED4(9HV)
• 1.6D TDCi: G8DA, G8DB, G8DD, G8DE, G8DF, GPDA, GPDC, HHDA, HHDB, HHJA, HHJB, HHJC, HHJD, HHJE, HHJF, MTDA, NGDA, T1DA, T1DB, T3DA, T3DB, TZJA, TZJB, UBJA
• 1.6D TDCi ECOnetic: G8DD, GPDA, HHJD, TZJA, TZJB
• OEM Tools -
• Flywheel Holding Tool (VSE6155.01): 11.9.850 (BMW)
• Flywheel Locking Pin (VSE5846.01): 303-734 (21-262) (Ford), 49JE02-020 (Mazda), 0194-C (PSA), 09910-05410 (Suzuki), 999-7169 (Volvo)
• Camshaft/HP Fuel Pump Locking Pins (VSE5846.02): 11.0.790 (BMW), 303-735 (212-263) (Ford), 49JE02-021 (Mazda), 0194-B (PSA), 09910-05410 Suzuki, 999-7122 (Volvo)
• Crankshaft Locking Pin (VSE5846.03): 11.0.300 (BMW), 303-732 (21-260) (Ford), 49JE02-018 (Mazda), 0194-A (PSA), 09910-05410 (Suzuki), 999-7121 (Volvo)
