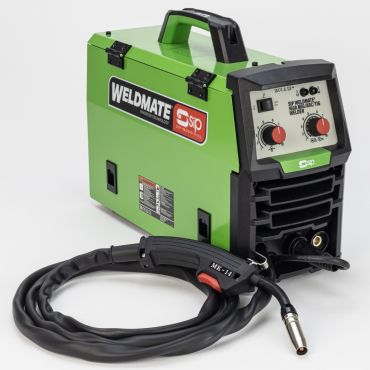

SIP WELDMATE 160A MIG/ARC/TIG Welder
The SIP WELDMATE® 160A MIG/ARC/TIG Welder is a multi-process inverter welder specifically designed for entry level users and small workshop applications.
Supplied with all accessories needed to weld straight from the box, this welder also performs gasless MIG welding for added flexibility.
Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.
Applications & uses: Perfect for entry level users and small workshop applications. Suitable for MIG/ARC/TIG welding. Performs gasless MIG welding. Ideal for mild steels and *stainless steel.
*Using stainless steel welding wire.
SIP 2-Year Standard Silver Warranty*
MULTI-PROCESS MIG/ARC/TIG WELDER FOR GREATER FLEXIBILITY AT HIGH DUTY CYCLES
- Duty cycle @ 40°C; 160A @ 15% (MIG) / 140A @ 15% (ARC/TIG). Performs gasless MIG welding for added versatility.
DURABLE WIRE FEEDER ENSURES SMOOTH & CONSISTENT FLOW OF WIRE TO MIG TORCH
- This easy-to-use device includes tension adjustment to maintain optimal performance.
- Supplied with interchangeable feed rollers for solid and flux-cored wire.
- Compatible with 0.7kg and 5kg welding wire spools.
INTUITIVE CONTROL PANEL TO SELECT BETWEEN WELDING PROCESSES
- Infinitely variable dials offer a smoother stepless output adjustment for higher quality and easily controlled welding.
METAL CASING WITH HEAVY-DUTY CARRY HANDLE FOR LONG LIFE USE
- High-quality finish is resistant to work area damage and aids mobility.
COMPACT & PORTABLE DESIGN FOR MOBILITY AROUND THE WORK AREA
- The compact unit is easy to move between locations using the fitted carry handle.
ACCESSORIES INCLUDED
- Supplied with integrated 2mtr MIG torch, electrode lead, earth lead, gas hose with clamps, 0.7kg flux-cored wire reel, feed rollers, contact tips, chipping hammer/brush and face shield.
COMPATIBLE WITH SIP WELDING CART FOR ADDED MOBILITY
- Compatible with the 05714 SIP 3-Tier Welding Cart, suitable for gas cylinders up to 50kg.
TEM NO. | 05733 | ||
Input Supply: | 230v (16A) | ||
Welding Process: | MIG | ARC | TIG |
Output Voltage: | 15v - 22v | 20.8v - 25.6v | 10.8v - 15.6v |
Output Current: | 20A - 160A | 20A - 140A | 20A - 140A |
Duty Cycle @ 40°C: | 160A @ 15% | 140A @ 15% | 140A @ 15% |
Wire Diameter: | ⌀ 0.8mm - 0.9mm | ||
Wire Spool Size: | 0.7kg, 5kg | ||
Welding Material Thickness: | 0.8mm - 6mm | ||
Protection / Insulation | 21S / H | ||
Net Weight: | 8.10kg | ||
Gross Weight: | 9.30kg | ||
Product Dimensions: | 310(H) x 170(W) x 340mm(D) | ||
Packaged Dimensions: | 342(H) x 280(W) x 465mm(D) | ||
