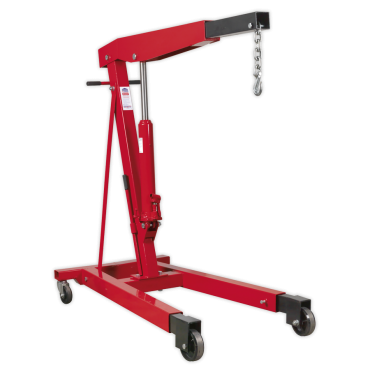

Fixed Frame Crane 3tonne
Description:
- Lifts 3000kg at 1200mm jib extension.
- Heavy-duty castors.
- Perfect for heavy commercial, industrial and workshop use.
- Extendable heavy-duty legs for improved stability, particularly when operating at maximum jib extensions.
- Pump access from side for safe handling of heavy loads.
- Delivered in knock-down form for reduced freight cost.
- Some self assembly required.
| Model No: | PH30 |
| Lifting Capacity in Position 1: | 3000kg |
| Lifting Capacity in Position 2: | 2000kg |
| Lifting Capacity in Position 3: | 1500kg |
| Lifting Capacity in Position 4: | 1000kg |
| Lifting Capacity in Position 5: | n/a |
| Max. Lift Ht at Jib Position 1: | 1880mm |
| Max. Lift Ht at Jib Position 2: | 1970mm |
| Max. Lift Ht at Jib Position 3: | 2010mm |
| Max. Lift Ht at Jib Position 4: | 2220mm |
| Max. Lift Ht at Jib Position 5: | n/a |
| Length of Jib Position 1: | 1200mm |
| Length of Jib Position 2: | 1400mm |
| Length of Jib Position 3: | 1610mm |
| Length of Jib Position 4: | 1820mm |
| Length of Jib Position 5: | n/a |
| Height Jib Down: | 1610mm |
| Length: | 1940mm* |
| Length Legs Extended: | n/a |
| Rear Width: | 780mm |
| Width Inside Front Frame: | 700mm* |
| Width Front Frame: | 855mm* |
| Height Legs Folded: | n/a |
| Height of Frame: | 195mm |
| Weight: | 155kg |
| Note: | *Legs Extended |
