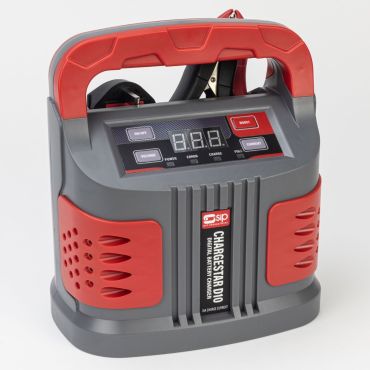

SIP CHARGESTAR D10 Digital Battery Charger
The SIP CHARGESTAR D10 Digital Battery Charger is a compact and portable digital battery charger designed for all types of 6v/12v lead acid batteries.
Featuring an intelligent microprocessor with 6-step automatic charging cycle, the CHARGESTAR D10 makes battery charging easier, faster and safer.
Applications & uses: Ideal for battery charging applications in automotive and workshop environments.
SIP 2-Year Standard Silver Warranty*
VERSATILE BATTERY CHARGER SUITABLE FOR A VARIETY OF 6V/12V LEAD ACID BATTERIES
- This includes WET, MF, EFB, GEL, AGM and CA battery types.
- Charging capacity of up to 200Ah.
MICROPROCESSOR-CONTROLLED CHARGER MAINTAINS HEALTHY LONG LIFE BATTERY PERFORMANCE
- An intelligent 6-step cycle automatically diagnoses battery condition and voltage before beginning a charging cycle.
- Once battery capacity is full, the unit stops charging and a control panel light is displayed.
- If the voltage is less than 3v, the unit prevents charging as battery recovery will not be possible.
- 'Boost - Fast Charge' mode delivers 5mins of continuous 15A charge.
- Supplied with 2x 1.2mtr leads and clip clamps.
- LED display screen and intuitive soft touch control panel.
- Compact and lightweight design with carry handle for easy movement between use.
BUILT-IN SAFETY & PROTECTION FEATURES MAXIMISE USER SAFETY
- Anti-spark system prevents sparks when connecting the clips to the battery terminals.
- Reverse polarity and overcharge protection ensure the unit operates only when correctly connected.
- Fitted with an overheat alarm to prevent charger damage. This automatically restarts once cooled.
Technical Information
|
ITEM NO. |
03502 |
|
Input Supply: |
220v - 240v 50-60Hz, 220w max. |
|
Input Fuse: |
10A |
|
Charging Voltage: |
6v / 12v DC |
|
Charging Current: |
2A / 5A / 10A |
|
Battery Low Voltage Detector: |
>3v |
|
Charging Steps: |
6; Fully Automatic Charging Cycle |
|
Battery Types: |
All 12v Lead Acid (WET, MF, EFB, GEL, AGM) |
|
Battery Capacity: |
4Ah - 220Ah (Charging) |
|
Temperature Range: |
0°C - 40°C |
|
Protection Level: |
IP20 |
|
Net Weight: |
1.18kg |
|
Gross Weight: |
1.5kg |
|
Product Dimensions: |
206(H) x 220(W) x 105mm(D) |
|
Packaged Dimensions: |
230(H) x 230(W) x 115mm(D) |
