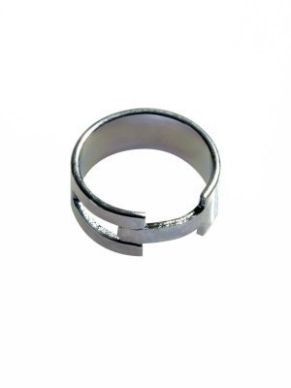

Metal Spring Rings - For Round Holes

In stock
Product Code
202527000
Metal Spring Rings - For Round Holes

Description:

  • To prevent soft panels (plastic) from creeping when fastened
  • To be inserted into the panel hole before screwing through it
  • Can be pre-assembled into the hole (Self-retaining through spring tension)
  • Choose ring height according to panel thickness
  • For use with flat head screws (and washer if necessary)

All dimensions in mm, angles in degrees / other dimensions and variants on request. Minimum order quantities could apply.

Write Your Own Review
You're reviewing:Metal Spring Rings - For Round Holes
Your Rating

Free delivery on all online orders over £54.99, delivered to the UK mainland only; A small order charge of £6.95+ vat is charged on all orders under £54.99 (net).

Some products are subject to an additional shipping surcharge due to their size and weight, contact us for details. Many of our items are available for next day delivery, where items are made to order or not currently in stock delivery times will vary.

Please contact us for a confirmed delivery date or alternatively a representative will confirm your order. Special delivery services are available; please contact our Sales Office to discuss your specific requirements.

The following postcodes will be subject to a delivery surcharge: AB31 to AB56, FK17-FK21, IV1-IV56 & IV63, JE1-JE5, KW1-KW17, PA21-PA40, PH4-PH41, PH49, PH50, HS, KA27, KA28, PA20, PA41-PA78, PH42-PH44 and ZE, This also includes Northern Ireland. Certain products within our range are subject to a delivery surcharge when delivered to additional areas in Scotland than those already listed.

We offer bulk discounts on all our products.

If you would like to find out more about bulk order discounts from Hall-Fast Industrial Supplies Ltd please contact us on 01623 645 645 or email sales@hall-fast.com.

Grouped product items
Part NumberMounted Internal DiameterHole Diameter (R)Ring Height (h)Spring Thickness (s)MaterialBox QuantityPriceQty
1286890049,4117,80,8CS-ZnNi5000
Call For Price
2025270006,27,23,10,5CS-32007500
Call For Price
05540400212,7135,80,5CS-G34000
Call For Price
2048030008,510,14,70,8CS-ZnNi-Bl10 000
Call For Price
0555330029,610,86,30,6CS-G25000
Call For Price
20397000012,4147,80,8CS-ZnNi4500
Call For Price
2154810008,110,141CS-544010 000
Call For Price
0554380067,18,160,5CS-G210 000
Call For Price
21350500011,512,55,80,5CS-G34000
Call For Price
20210500081031CS-ZnNi5000
Call For Price
210701000141651CS-ZnNi5000
Call For Price
21350400310,712,360,8CS-ZnNi5000
Call For Price
2043030007,99,55,10,8CS-ZnNi10 000
Call For Price
20251500013,415,431CS-54125000
Call For Price
05543900210,21260,8CS-ZnNi5000
Call For Price
1300370026,78,731CS-ZnNi5000
Call For Price
1297540028,89,85,50,5CS-54408000
Call For Price
22000300010,211,2100,5CS-ZnNi4500
Call For Price
1314730036,28,641,2CS-54405000
Call For Price
1326440041718,66,30,8CS-ZnNi2000
Call For Price
2070730008,89,830,5CS-ZnNi5000
Call For Price
