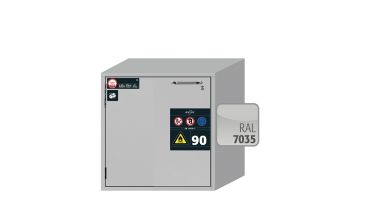

Asecos Safety Storage Under Bench Cabinet UB-T-90 Model UB90.060.059.T

Model

• Type 90 Safety storage under bench cabinet
• Under bench cabinet with wing door (left hinged)
• With cylinder locking and locking state indicator
• model line UB-LINE
• model class UB-T-90
• Model UB90.060.059.T
• Type tested in accordance with EN 14470-1
• DIN EN 16121/16122
• GS certified
• CE compliant
• Dimensions exterior: W x D x H (mm) 593 x 574 x 600
• Dimensions interior: W x D x H (mm) 470 x 452 x 502

Colour

• Body colour light grey (RAL 7035)
• With wing door in light grey (RAL 7035)

Interior equipment with

• 1 x perforated insert, load capacity: 75 kg, powder-coated sheet steel, RAL 7035 light grey
• 1 x bottom collecting sump, capacity: 12 litres, powder-coated sheet steel, RAL 7035 light grey

Technical data

• External dimensions W x D x H: 593 x 574 x 600 mm
• Internal dimensions W x D x H: 470 x 452 x 502 mm
• Weight: 119 kg
• Minimum exhaust air quantity 10 times: 1 m³/h
• Differential pressure (10 times air change): 1 Pa
• Differential pressure (10 times air change EK5/AK4): 1 Pa
• Recom. exhaust air quantity 30 times: 10 m³/h
• Distributed load: 450 kg/m²
• Maximum load: 300 kg
• Max. load of perforated insert: 75.00 kg
• Capacity of bottom collecting sump: 12.00 litres
• ecl@ss 5.1.4     21-10-04-07
• ecl@ss 9.1         40-06-90-90
• ecl@ss 10.0      40-06-90-90
• ecl@ss 11.0      40-06-01-04
• Maximum load (lb): 661 lb
