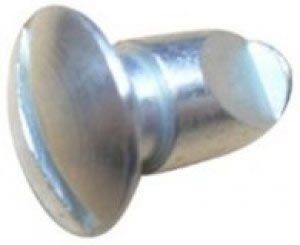

Oddie Quarter Turn Fasteners

The Complete Guide to Oddie Quarter Turn Fasteners: Applications, Installation, and Advantages

In the world of industrial and panel fastening systems, few solutions offer the perfect balance of security, accessibility, and efficiency quite like Oddie quarter turn fasteners. These ingenious devices have revolutionized access panel design across numerous industries, providing quick-release functionality without compromising on holding strength or reliability. This comprehensive guide examines everything you need to know about Oddie fasteners—from their fundamental design and operation to specific applications, installation techniques, and advantages over alternative fastening methods.

Understanding Oddie Quarter Turn Fasteners: The Fundamentals

Oddie fasteners represent a specialized category of quick-release, quarter-turn fastening systems designed primarily for securing access panels, enclosures, and removable components in applications requiring frequent but secure access.

What Are Oddie Fasteners?

At their core, Oddie quarter turn fasteners consist of three primary components working in harmony:

1. Stud Assembly: The male component typically mounted to the removable panel, featuring a specially designed head that rotates 90 degrees (quarter turn) to engage or disengage
2. Receptacle: The female component mounted to the fixed structure, containing the engagement mechanism
3. Spring Element: Providing tension to maintain secure engagement and compensate for panel variations

This elegantly simple design delivers reliable performance across numerous applications while offering significant advantages over conventional fastening methods.

The Operating Principle Behind Oddie Quarter Turn Fasteners

The genius of the Oddie fastener lies in its operating mechanism:

1. Insertion Phase: The stud is aligned with and inserted into the receptacle
2. Engagement: A quarter turn (90-degree rotation) of the stud head engages it with the receptacle's locking features
3. Secured Position: The spring element maintains constant tension, creating a vibration-resistant and secure connection
4. Release: A simple quarter turn in the opposite direction instantly disengages the fastener

This quick operation makes Oddie fasteners ideal for applications requiring frequent access while maintaining secure closure when engaged.

Key Types and Variations of Oddie Quarter Turn Fasteners

The Oddie fastener family includes several specialized variants:

Standard Oddie Quarter Turn Fasteners

The classic configuration featuring:

• Zinc-plated or stainless steel construction
• Slotted or specialized head designs
• Standardized mounting dimensions

Low-Profile Oddie Fasteners

Designed for applications with strict space constraints:

• Minimized projection from panel surface
• Reduced overall dimensions
• Maintained holding strength despite compact design

Heavy-Duty Oddie Fastener Variants

Engineered for demanding applications:

• Enhanced load capacity
• Reinforced components
• Suitable for high-vibration environments

Specialized Industry-Specific Oddie Systems

Tailored to particular application requirements:

• High-temperature resistant versions
• Corrosion-resistant stainless steel variants
• Custom head designs for specific tools or security requirements

Applications and Industries Utilizing Oddie Quarter Turn Fasteners

Oddie fasteners have found wide adoption across numerous sectors where quick access combined with secure closure is essential:

Electrical and Electronics Enclosures

In electrical applications, Oddie fasteners provide significant advantages:

• Control Panel Access: Enabling rapid maintenance access while ensuring proper closure
• Junction Box Security: Maintaining environmental sealing while permitting servicing
• Electronics Enclosures: Balancing security with accessibility for repairs or modifications
• Switchgear Panels: Allowing qualified personnel quick access during maintenance procedures
• Data Centre Equipment: Securing rack-mounted equipment with easily accessible fasteners

The electrical industry appreciates Oddie fasteners for their ability to maintain enclosure integrity while permitting authorized access without time-consuming removal of multiple conventional fasteners.

Transportation and Automotive Applications

Vehicle manufacturers and transportation systems rely heavily on quarter turn fasteners:

• Automotive Access Panels: Securing maintenance points that require regular inspection
• Mass Transit Vehicles: Interior panelling requiring occasional removal for service
• Aircraft Interior Components: Securing panels where weight and vibration resistance are critical
• Marine Applications: Corrosion-resistant fastening for access panels in challenging environments
• Railway Equipment: Securing access panels subject to constant vibration and movement

Transportation applications benefit from the vibration resistance and quick access characteristics of Oddie fasteners, reducing maintenance time while ensuring components remain securely fastened during operation.

Industrial Machinery and Equipment

Manufacturing and industrial equipment utilize Oddie fasteners for practical access solutions:

• Machine Guards: Securing safety covers that require removal during maintenance
• Access Panels: Allowing quick entry to internal components requiring periodic service
• Equipment Housings: Providing security with accessibility for industrial systems
• Ventilation Systems: Securing access points while maintaining proper sealing
• Industrial Control Enclosures: Protecting sensitive components while enabling servicing

Industrial implementations benefit from the durability and reliability of Oddie fasteners in demanding environments where conventional fasteners might loosen or require excessive maintenance time.

Specialized Implementation Examples

Beyond major industries, Oddie fasteners excel in various specialized applications:

• HVAC Systems: Securing access panels for filter changes and system maintenance
• Medical Equipment: Providing secure but quick access to serviceable components
• Telecommunications Infrastructure: Protecting equipment while enabling technician access
• Military and Defence Equipment: Securing access panels in high-reliability applications
• Renewable Energy Systems: Fastening access points on wind turbine components and solar installations

Advantages of Oddie Quarter Turn Fasteners Over Alternative Solutions

Several key attributes have driven the widespread adoption of Oddie fasteners across industries:

Speed and Efficiency Benefits

Oddie fasteners deliver significant operational advantages:

• Rapid Operation: Quarter-turn engagement/disengagement saves substantial time compared to threaded fasteners
• Tool Flexibility: Various head designs accommodate different access requirements (screwdriver, hex key, or tool-free operation)
• Reduced Maintenance Time: Faster access translates directly to labour cost savings
• Simplified Training: Intuitive operation requires minimal instruction for maintenance personnel
• Consistent Operation: Reliable engagement mechanism works consistently across thousands of cycles

Organizations implementing Oddie fasteners typically report 70-80% time savings when accessing panels compared to traditional screwed fasteners.

Security and Reliability Advantages

Despite quick operation, Oddie fasteners maintain excellent security:

• Positive Locking: Clear tactile and often audible feedback confirms proper engagement
• Vibration Resistance: Spring tension maintains secure closure even in high-vibration environments
• Consistent Tension: Automatically accommodates minor panel alignment variations
• Tamper-Evident Options: Available variants show clear indications of unauthorized access
• Controlled Access: Specialized head designs can restrict operation to authorized personnel with appropriate tools

This combination of security with accessibility represents the fundamental advantage of Oddie quarter turn fastening systems.

Design and Engineering Benefits

From an engineering perspective, Oddie fasteners offer several design advantages:

• Space Efficiency: Compact design minimizes intrusion into valuable internal space
• Weight Reduction: Lighter than equivalent multiple-screw systems
• Gasket Compatibility: Maintains consistent pressure on gaskets for proper sealing
• Design Flexibility: Various mounting options accommodate different materials and thicknesses
• Aesthetic Advantages: Clean appearance with minimal visible hardware

These attributes make Oddie fasteners particularly valuable in applications where design considerations extend beyond mere functionality.

Cost-Effectiveness Analysis

While individual Oddie fasteners may have higher initial costs than basic screws, the total economic picture reveals significant advantages:

• Installation Time Reduction: Faster initial assembly compared to multiple individual fasteners
• Maintenance Cost Savings: Dramatic reduction in access time for service procedures
• Replacement Reduction: Lower likelihood of stripping or damage compared to threaded fasteners
• Inventory Simplification: Standardized components reduce parts inventory requirements
• Extended Equipment Lifespan: Proper closure ensures better protection of internal components

When analysed from a total cost of ownership perspective, Oddie fasteners typically deliver substantial economic benefits over the life of the equipment.

Installation and Implementation Guidelines

Proper implementation ensures optimal performance from Oddie quarter turn fastening systems:

Design Considerations for New Applications

When incorporating Oddie fasteners into new designs:

• Load Analysis: Determine the required holding strength and select appropriate fastener size
• Spacing Calculation: Establish optimal fastener spacing based on panel size and sealing requirements
• Material Compatibility: Consider both the panel material and the environment when selecting fastener material
• Clearance Requirements: Ensure adequate space for fastener operation and tool access
• Alignment Planning: Design for proper alignment between stud and receptacle components

Careful consideration of these factors during the design phase ensures successful implementation.

Installation Process for Oddie Quarter Turn Fasteners

The typical installation follows these steps:

1. Marking: Precisely locate and mark fastener positions on both panel and frame
2. Drilling: Create appropriately sized mounting holes (typically using a step drill for sheet metal)
3. Receptacle Mounting: Install the receptacle component to the fixed structure
4. Stud Assembly: Mount the stud assembly to the removable panel
5. Adjustment: Test operation and adjust as needed for smooth engagement
6. Verification: Confirm proper function through multiple engagement/disengagement cycles

While generally straightforward, proper installation is critical for optimal performance.

Common Installation Challenges and Solutions

Several issues may arise during installation:

• Misalignment Issues: Ensure precise measurements and consider using alignment fixtures for multiple fasteners
• Over-tightening Concerns: Follow manufacturer torque specifications for mounting hardware
• Panel Flexing: Add reinforcement or additional fasteners for thin or flexible panels
• Thread Engagement: Ensure sufficient thread engagement for secure mounting
• Clearance Problems: Verify adequate clearance for operation before finalizing installation

Most implementation difficulties can be avoided through careful planning and following manufacturer guidelines.

Maintenance and Troubleshooting of Oddie Fasteners

Despite their reliability, proper maintenance ensures optimal long-term performance:

Routine Maintenance Recommendations

Regular attention helps maintain trouble-free operation:

• Periodic Inspection: Check for proper engagement and signs of wear
• Cleaning: Remove debris that might interfere with proper operation
• Lubrication: Apply appropriate lubricant when recommended by the manufacturer
• Receptacle Cleaning: Ensure the female component remains free of debris
• Operational Testing: Periodically verify smooth function through complete operation cycles

These simple procedures significantly extend the service life of Oddie fastening systems.

Common Issues and Troubleshooting

When problems occur, these approaches often resolve them:

• Difficult Engagement: Check for misalignment, damage, or debris in the receptacle
• Incomplete Locking: Verify proper stud length and receptacle mounting
• Excessive Wear: Inspect for appropriate use within design specifications
• Corrosion Concerns: Consider upgrading to stainless steel variants for harsh environments
• Loosening in Service: Ensure proper initial installation and consider thread-locking compounds for mounting hardware

Most operational issues can be resolved through these basic troubleshooting steps.

Comparing Oddie Fasteners with Alternative Systems

Understanding how Oddie fasteners compare with alternatives helps inform selection decisions:

Oddie Fasteners vs. Traditional Screws and Bolts

Comparing with conventional threaded fasteners:

Oddie Fasteners vs. Other Quarter Turn Systems

Comparing with alternative quick-release systems:

Oddie Fasteners vs. Dzus and Southco Quarter Turn Fasteners

Comparing with other popular quarter-turn brands:

Each system has its specific advantages, with Oddie fasteners generally offering an excellent balance of performance, availability, and value.

Sourcing and Specification Guidelines

Ensuring you select the right Oddie fasteners for your application:

Key Specification Parameters

When ordering or specifying Oddie fasteners, consider these critical factors:

• Panel Thickness: Both the mounting panel and the receiving structure thickness
• Material Requirements: Based on environmental conditions (zinc-plated steel, stainless steel, etc.)
• Head Style: Slotted, cross-recessed, hex socket, wing, or specialized security designs
• Finish Type: Standard zinc plating, black oxide, or specialized coatings
• Thread Size: For mounting to the panel (typically M4, M5, or similar)
• Grip Range: The total thickness the fastener must secure
• Special Requirements: High temperature, corrosion resistance, or vibration specifications

Proper specification ensures optimal performance and compatibility with your application.

Finding Quality Suppliers

Reliable sources for quality Oddie quarter turn fasteners include:

• Industrial Hardware Distributors: Often carry comprehensive ranges of Oddie fasteners
• Specialized Fastener Suppliers: Provide technical support alongside product offerings
• Online Industrial Marketplaces: Convenient sourcing with specification filtering
• Direct from Manufacturers: For large quantities or specialized requirements
• Electronics Enclosure Suppliers: Often offer compatible Oddie fasteners as accessories

Working with reputable suppliers ensures you receive genuine, quality components that will perform as expected.

Future Trends in Quarter Turn Fastening Technology

The evolution of Oddie and similar fastening systems continues:

Material Innovations

Advancing material science is influencing fastener development:

• Lightweight Composites: Reducing weight for transportation applications
• Advanced Polymers: Offering corrosion resistance with reduced weight
• Specialized Alloys: Providing enhanced performance in extreme environments
• Antimicrobial Materials: For medical and food processing applications
• Sustainable Options: Environmentally friendly materials and processes

These material advances are expanding the application range for quarter turn fasteners.

Design Evolutions

Fastener design continues to evolve to meet changing requirements:

• Tool-Free Operation: Increased focus on hand-operable variants
• Enhanced Security Features: Advanced options to prevent unauthorized access
• IoT Integration: Smart fasteners with embedded sensors for status monitoring
• Multi-Function Designs: Combining fastening with additional features like grounding
• Miniaturization: Smaller, lighter designs for compact electronic devices

These innovations are expanding the capability and application scope of quarter turn fastening technology.

Conclusion: The Enduring Value of Oddie Quarter Turn Fasteners

In a world where efficiency, reliability, and performance are paramount, Oddie quarter turn fasteners continue to demonstrate their value across countless applications. Their elegant balance of security with accessibility makes them ideal for situations where panels or components require both firm attachment and frequent access.

From electronics enclosures to transportation systems, industrial equipment to specialized machinery, Oddie fasteners provide a proven solution that outperforms conventional alternatives in many scenarios. Their standardized design, reliable operation, and substantial time-saving benefits have established them as a preferred choice for engineers and designers worldwide.

As technology continues to advance, Oddie fasteners evolve alongside, incorporating new materials, enhanced features, and improved performance characteristics. This ongoing development ensures these ingenious fastening devices will remain relevant and valuable for decades to come, continuing their important role in the diverse world of industrial and electronic fastening applications.

Whether you're designing new equipment, improving existing systems, or simply seeking more efficient access solutions, Oddie quarter turn fasteners deserve serious consideration for their unique combination of simplicity, reliability, and performance.

Hall-Fast stocks a standard range of Oddie ¼ Turn Fasteners that are available to buy online in small quantities https://www.hall-fast.com/fasteners-small-components/quarter-turn-fasteners-locks we also supply customers in many industry sectors in bulk quantities, please contact us to discuss your specific requirements sales@hall-fast.com
