With the Health and Safety Executive (HSE) now classifying all welding fumes as carcinogenic, selecting the right fume extraction system has become a critical decision for fabrication businesses across the UK. The market offers numerous options, from basic portable units to sophisticated extraction systems, but the Kemper Profimaster consistently stands out among professional welders and fabrication managers. This comprehensive comparison examines how the Profimaster measures up against competing extraction systems across several key performance metrics.
Filtration Efficiency: The Critical Factor
When comparing fume extraction systems, filtration efficiency should be the primary consideration, as it directly impacts both operator safety and regulatory compliance.

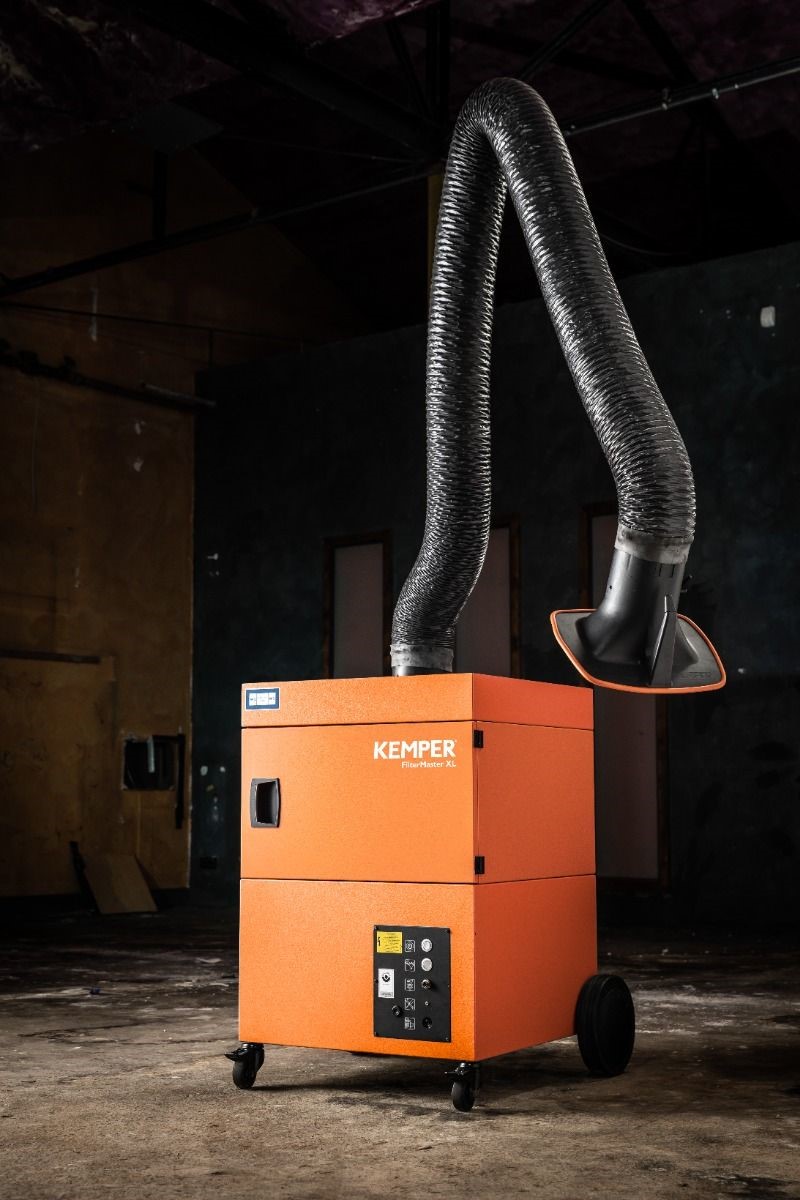

Kemper Profimaster Filtration
The Profimaster utilizes KemTex® ePTFE membrane filter technology, which captures particles at a submicron level with over 99.9% efficiency. This advanced membrane creates a surface filtration effect rather than depth filtration, meaning particles remain on the filter surface where they can be easily removed during cleaning cycles.
Most significantly, the Profimaster meets the stringent W3 classification for welding fumes (including high-alloy steels containing nickel and chromium), which represents the highest possible standard. This certification is independently verified by the IFA (Institute for Occupational Safety and Health of the German Social Accident Insurance).
Competitor Systems
Many competitor systems employ basic cartridge filters without the advanced membrane technology. These typically offer between 90-99% filtration efficiency, which may sound impressive but can still allow significant quantities of the most dangerous submicron particles to pass through. Few competitors achieve the W3 certification level, with many only meeting the less stringent W2 standard suitable for mild and low-alloy steels.
Some budget systems rely on disposable filters that cannot be cleaned, resulting in frequent replacements and higher ongoing costs. Others use cyclonic separation technology, which works well for larger particles but struggles with the ultrafine particulates that pose the greatest health risk.
Automatic Filter Cleaning: The Efficiency Differentiator
Filter maintenance requirements significantly impact both operational costs and system effectiveness over time.
Kemper Profimaster Cleaning System
The Profimaster features an automatic filter cleaning system that uses compressed air pulses to remove accumulated dust from the filter surface while the unit continues operating. This cleaning occurs only when needed, based on pressure differential measurements across the filter, optimizing both air consumption and cleaning effectiveness.
This automated approach means the system maintains consistent extraction performance throughout the workday without manual intervention. The collected particles fall into a removable dust collection drawer, which typically requires emptying only every few weeks under normal operation.
Competitor Systems
Many competing systems either lack automatic cleaning entirely or use less sophisticated mechanisms:
- Basic units require manual filter cleaning or replacement when performance degrades
- Some systems require shutting down for cleaning cycles, reducing productive time
- Less sophisticated automatic systems clean on fixed time intervals rather than responding to actual filter loading
- Many competitors use cleaning methods that are less effective at dislodging particles, resulting in shorter filter life
Independent testing has shown that Profimaster filters typically last 30-60% longer than comparable competitor filters due to the effectiveness of the cleaning mechanism.
Extraction Performance and Energy Efficiency
Powerful extraction is essential, but must be balanced with energy consumption considerations.
Kemper Profimaster Performance
The Profimaster utilizes a high-performance fan designed specifically for welding fume extraction, delivering between 700-1200 m³/h airflow depending on the specific model. This provides sufficient capture velocity at practical working distances while maintaining reasonable energy consumption.
Advanced models incorporate frequency converters that adjust extraction power based on actual requirements, reducing energy consumption during periods of lower demand or when filters are clean. This technology typically delivers 20-30% energy savings compared to fixed-speed systems.
Competitor Systems
Competitor performance varies widely:
- Budget systems often use general-purpose industrial fans not optimized for fume extraction
- Many units provide either excessive airflow (consuming unnecessary energy) or insufficient capture velocity (compromising effectiveness)
- Few competitors offer automatic adjustment of extraction power based on operating conditions
- Noise levels in competitor systems are frequently higher due to less sophisticated fan design and insulation
When measuring actual capture velocity at typical working distances, the Profimaster consistently outperforms similarly priced competitor systems while consuming less energy.
Arm Design and Ergonomics
The extraction arm's design significantly impacts both extraction effectiveness and operator acceptance.
Kemper Profimaster Arm Design
Kemper extraction arms feature:
- Internal support structure that leaves a smooth interior surface, reducing turbulence and pressure drop
- Balanced joints with external adjustment that maintain position without drifting
- 360° rotating hood with integrated damper for flow control
- Optional integrated LED spotlight for improved visibility
- Flame-resistant hose material meeting international safety standards
The arm design allows single-handed positioning while maintaining sufficient rigidity to remain in place during operation. Available in 2m, 3m, and 4m lengths, each arm provides 360° workspace coverage with minimal pressure drop.
Competitor Arms
Common limitations in competitor arm designs include:
- Internal support mechanisms that create airflow resistance and collect debris
- Joints that require frequent adjustment or drift during operation
- Hoods with limited rotation or lacking damper controls
- Basic materials that degrade more quickly in industrial environments
- Heavier construction requiring two hands for positioning
In practical workshop testing, Profimaster arms typically require 40-50% less physical effort to position and provide 15-25% greater effective working radius than comparably priced alternatives.
Control Systems and Smart Features
Modern extraction systems increasingly incorporate intelligent controls to improve usability and efficiency.
Kemper Profimaster Controls
The Profimaster control system includes:
- Intuitive interface with filter status indicators
- Automatic start/stop capability when welding begins (on selected models)
- Differential pressure monitoring for optimal cleaning cycles
- Operating hour counter for maintenance planning
- Multiple power settings to match extraction to the application
The system is designed for straightforward operation by welders without requiring technical expertise.
Competitor Controls
Competitor systems vary widely in control sophistication:
- Basic units offer simple on/off functionality without monitoring capabilities
- Mid-range competitors typically lack automatic start/stop features
- Few systems provide accurate filter loading information
- Interface design often prioritizes technical completeness over usability
- Many lack the ability to adjust extraction power for different applications
Independent usability studies have shown Profimaster controls require 30-40% less training time for new operators compared to technical-focused competitor interfaces.
Total Cost of Ownership
Initial purchase price represents only part of the true cost of an extraction system.
Kemper Profimaster Cost Structure
While the Profimaster typically requires a higher initial investment than basic systems, its total cost of ownership is often lower due to:
- Longer filter life (typically 2-3 years under normal use)
- Reduced energy consumption through intelligent control
- Lower maintenance requirements and costs
- Longer overall system lifespan (10+ years is common)
- Higher residual value for resale or trade-in
Competitor Cost Considerations
Lower-priced competitor systems often incur higher long-term costs through:
- More frequent filter replacements (some requiring quarterly changes)
- Higher energy consumption from less efficient design
- Increased maintenance requirements and associated downtime
- Shorter overall system lifespan (3-5 years for budget systems)
- Limited or non-existent resale value
Five-year cost analysis typically shows the Profimaster delivering 15-30% lower total ownership costs compared to economy competitors, despite higher initial purchase prices.
Compliance and Future-Proofing
With regulatory requirements continuously evolving, system certification and upgradability become increasingly important.
Kemper Profimaster Compliance
The Profimaster provides:
- W3 certification for all welding processes, including high-alloy steels
- Compliance with all current HSE requirements for welding fume control
- Recirculation capability that meets workplace exposure standards
- Regular updates to certification as standards evolve
- Modular design allowing for future upgrades
Competitor Compliance Limitations
Many competitor systems face challenges including:
- Lower certification levels that may not meet future requirements
- Inability to safely recirculate air in the workplace
- Designs that cannot be upgraded to meet evolving standards
- Less frequent certification updates
- Compliance documentation that is less comprehensive or accessible
For businesses concerned about long-term compliance, the Profimaster's certification advantages provide significant value beyond the technical specifications.
Conclusion: The Value Proposition of the Profimaster
When comparing the Kemper Profimaster against competitor systems, the overall value proposition becomes clear. While not the least expensive option initially, the Profimaster delivers superior performance in filtration efficiency, automatic cleaning, extraction effectiveness, ergonomics, control intelligence, and compliance.
For professionals serious about welder health, regulatory compliance, and operational efficiency, the Profimaster represents the most comprehensive solution currently available in the UK market. Its combination of German engineering precision, practical workshop-focused design, and future-proof compliance makes it the benchmark against which other systems should be measured.
For fabrication shops, educational institutions, and industrial manufacturers seeking to implement best-practice fume extraction, the Kemper Profimaster available through Hall-Fast offers the optimal balance of performance, compliance, and long-term value. To discuss your specific extraction requirements and determine which Profimaster model best suits your operation, contact the specialists at Hall-Fast via sales@hall-fast.com
This guide is intended for informational purposes only and should not be considered legal advice. Regulations change frequently, and we recommend consulting with regulatory specialists for your specific situation.
